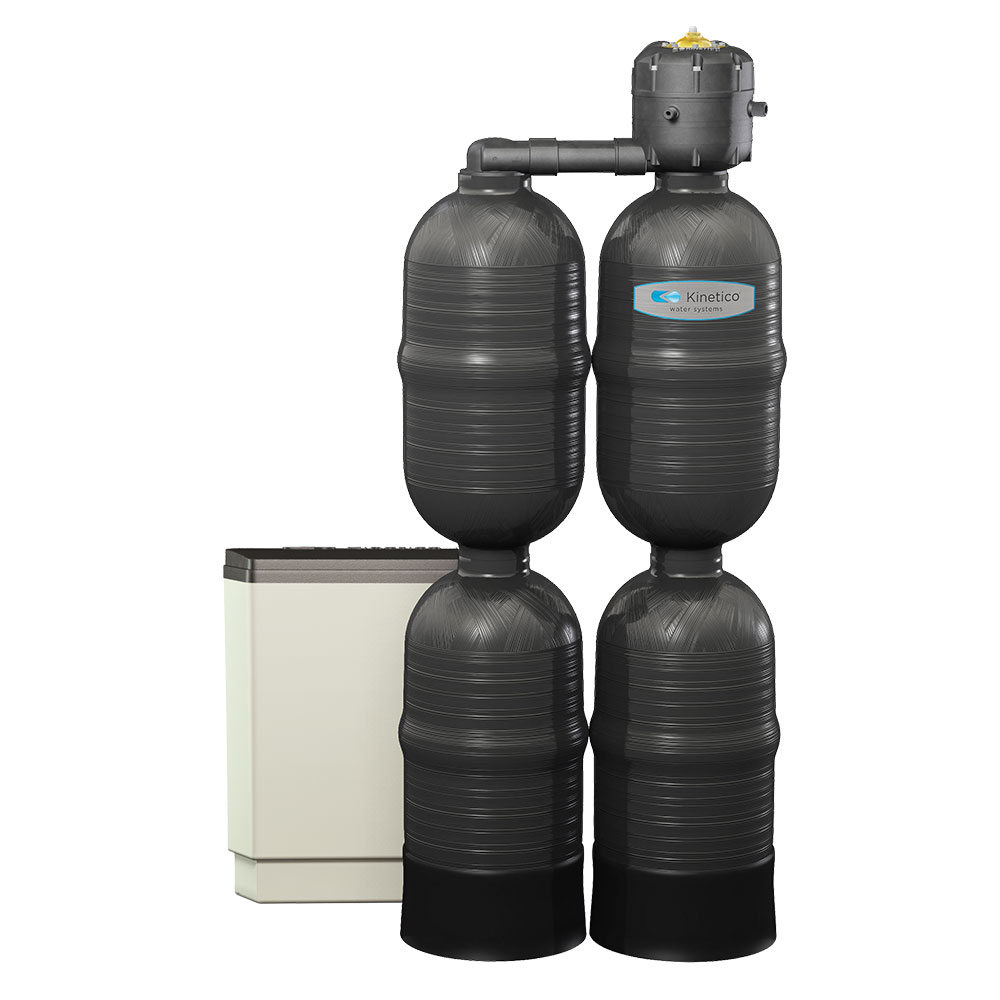

Q950 OD XP Carbon

Part Number: 18131

The S850 OD XP is essentially two systems in one, providing on demand carbon filtration and water softening.

  • Continuous availability of treated water 24/7.
  • Easy to install and maintain, non-electric system
<b>Compact Design</b><br />

Compact Design

<b>Dual - Two Systems in one!</b><br />

Dual - Two Systems in one!

<b>Non Electric</b><br />

Non Electric

<b>High Efficiency</b><br />

High Efficiency

Enquire Now

Description

  • null

    Non-Electric

    Kinetico uses the kinetic energy of moving water to power its systems instead of electricity – thanks to our patented Turbine. So you do not have to worry about costly repairs or higher electricity bills.

  • Compact icon

    Compact Design

    Small and compact, the system is designed to take up as little space as possible.

  • Dual

    Dual system

    Two systems in one! A softener plus a filter in one unit, perfect when space is at a premium.

  • Metered regeneration

    Metered Regeneration

    • The unit measures water usage with watch like precision and regenerates only when necessary, resulting in less waste and greater saving.
    • Metered system regenerates based on actual water usage
      resulting in minimal salt use and maximum water efficiency.
  • null

    Soft Water Rinse

    Uses only soft, conditioned water to clean itself, which prolongs the life of the water softener.

  • null

    Countercurrent Regeneration

    Unlike most other water softeners, our systems regenerate from the bottom up for a more even and efficient use of the resin beads. Resulting in less waste, less salt and a longer lasting system.

  • Easy Maintenance

    Easy Maintenance

    The system is easy to maintain and does not require excessive maintenance after installation.

  • Quick connect and easy installation

    Quick Connect/Easy Install

    Easy to connect and install with no timers or complicated mechanisms to set.

  • Durable Design

    Durable Design

    Designed and built to withstand moist, dusty and dirty conditions.

  • High Efficiency

    High efficiency

    Very efficient unit with accurate regeneration to guarantee the best performance.

Product Specification

Specification

Product Name: S850 OD XP


Width: 432 mm


Depth: 203 mm


Height: 1219 mm


Weight (Shipping / Operating): 73 – 91 kg




Performance

Minimum flow: 1,1 l/min


Maximum Flow @ 1 ∆ bar: 43,5 l/min


Hardness as CaCO3 (max): 530 mg/l




Regeneration

Salt Used / Capacity: 1,5 – 1,8 /114 kg


Time: 50 minutes


Volume: 189 litres




System

Media Volume: 2 x 7 litres (AC) + 2 x  20 litres (Resin)


Inlet/Outlet Connections: Custom


Temperature Range: 2 – 49°C


Inlet Pressure (Min/Max): 2,0 / 8,6 bar




Additional information

Application

Taste & Odour, Free-standing design, Medium Flow, POE, Well Water

Categories

Combination Systems

Water Softeners Series

Commercial XP Series
